CD-3500

CD-3500




技术参数CD-3500CD-4500CD-5500CD-6500CD-8000
输出功率
       (@1kHz,THD+N=0.1% )
Stereo 8Ω350Wx2450Wx2550Wx2650Wx2800Wx2
Stereo 4Ω500Wx2670Wx2750Wx2970Wx21200Wx2
Bridge 8Ω700W1000W1300W1700W2000W
总谱波失真
       (THD+N,1kHz,Rated Power,8Ω)
0.01%
频率响应(@1w,8Ω)20Hz-20kHz(+0dB,-0.5dB)
转换速率60υs
互调失真(IMD,@Rated Power,8Ω)≤0.01%
通道分高度(@Rated Power,RL=8Ω,1kHz)≥75dB
性噪比(S/N Ratio)≥103dB≥105dB
阻尼系数(@3Ω,1f=1kHz)400450500500550
灵敏度(@Rated Power,8a)0.775V/1.0V/1.44V
输入阻抗  和(Balanced/Unbalanced)20kΩ(Balanced),10kΩ(Unbalanced)
LED指示灯每通道Protece/ Clip/Signal / Active

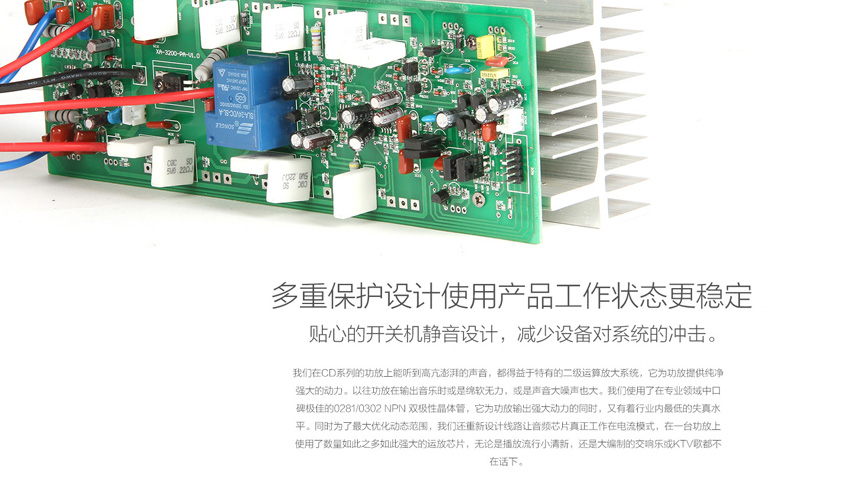

保护线路短路保护、过裁保护、软启动、过温、限幅、静音保学
放大电路Class-ABClass-H
工作电压~AC220V/50Hz
净尺寸(WxHxD)484x88x450mm
包装尺寸(WxHxD)550x175x540mm
净重 Net Weight(1 piece/pack)12kg16kg21kg23kg24.5kg
总重 Gross Weight(1 piece/pack)13.5kg17.5kg22.5kg24.5kg26kg
